Broadcast Playout
Baioss Playout
Multi-channel broadcast playout system with playlist scheduling, video trimming, logo overlay, and native SRT/RTMP/NDI ingest. Designed for newsrooms, TV stations, and live production environments.
- SRT
- RTMP
- NDI
- CG
Features
Everything You Need for Professional Playout
4-Channel Output
Independent channels A, B, C, and D with individual preview, timecode display, and status indicators. Each channel can run different content simultaneously.
Playlist Management
Create, edit, and organize playlists by program and date. View total, remaining, and played duration at a glance. Create templates for recurring shows.
Multi-Protocol Ingest
Native SRT, RTMP, NDI, and SDI signal ingestion. Add live feeds directly into playlists with intuitive URL configuration and instant connection validation.
Frame-Accurate Trimming
IN/OUT/TRIM controls with sub-second accuracy. Navigate with ±1s and ±5s jog controls. Preview every frame before it goes to air.
Logo & Watermark Overlay
Upload PNG, JPG, GIF, WEBP, or WEBM with alpha support. Position controls, fade animations, and direct CG integration for dynamic graphics.
Role-Based Access
Admin and Editor roles with program-level permissions. Control who can cue, edit, or configure. Essential for multi-user newsroom environments.

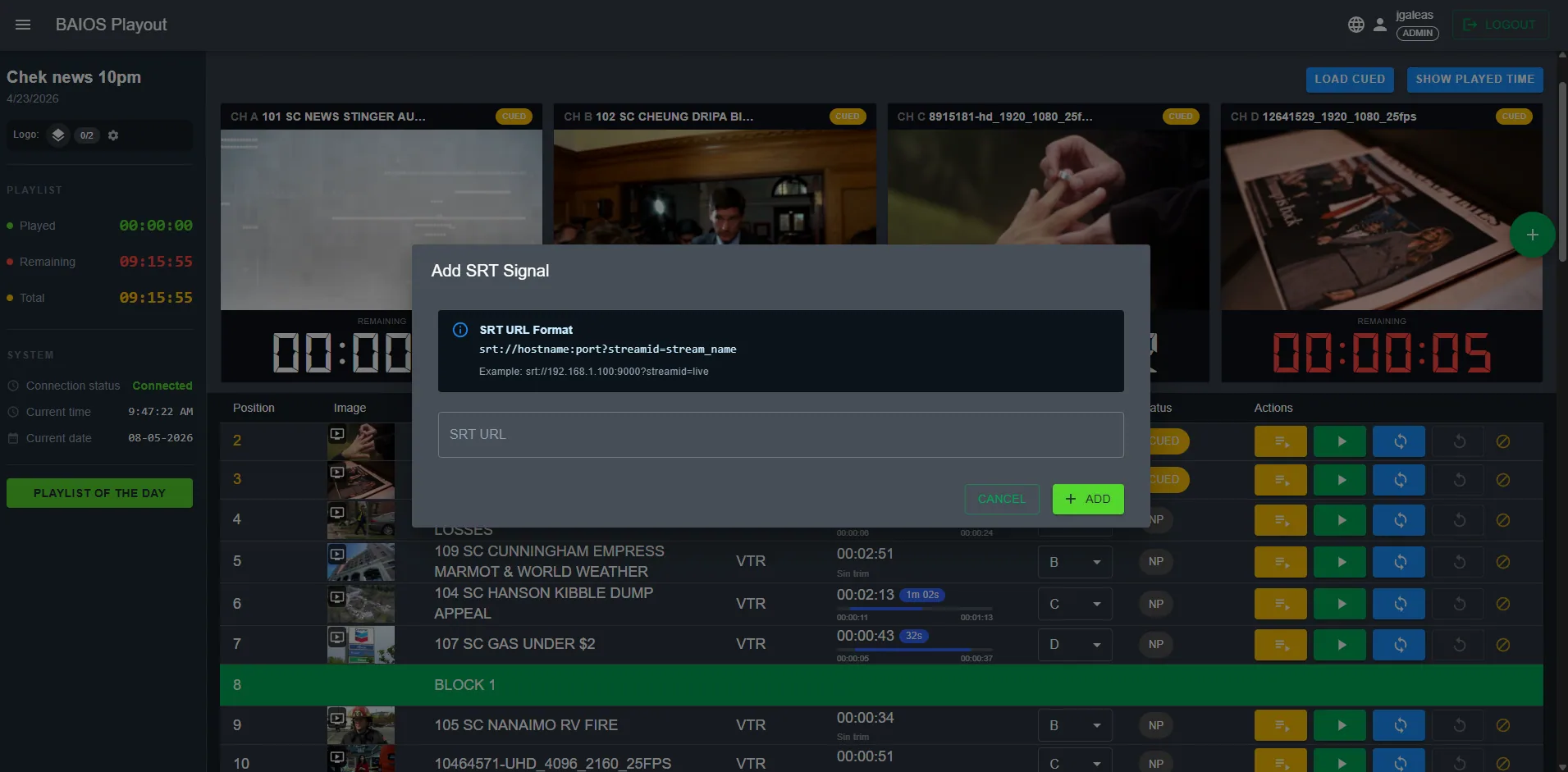

Ingest
Live Stream Ingest Made Simple
Add SRT, RTMP, and NDI signals directly into your playlist with intuitive URL configuration. The system validates formats and connects instantly — no command-line required.
Whether you're pulling a remote feed from an OB van or receiving a contribution stream across the globe, Baioss handles the protocol handshake so you can focus on the show.
Graphics
Professional Logo & Watermark Overlay
Upload PNG, JPG, GIF, WEBP, or WEBM logos with alpha channel support. Position anywhere on screen with pixel-perfect accuracy.
Fade in/out animations with configurable duration. Direct CG integration for dynamic graphics overlays — perfect for news tickers, lower thirds, and branded idents.
- PNG
- GIF
- WEBM α
- CG
Editing

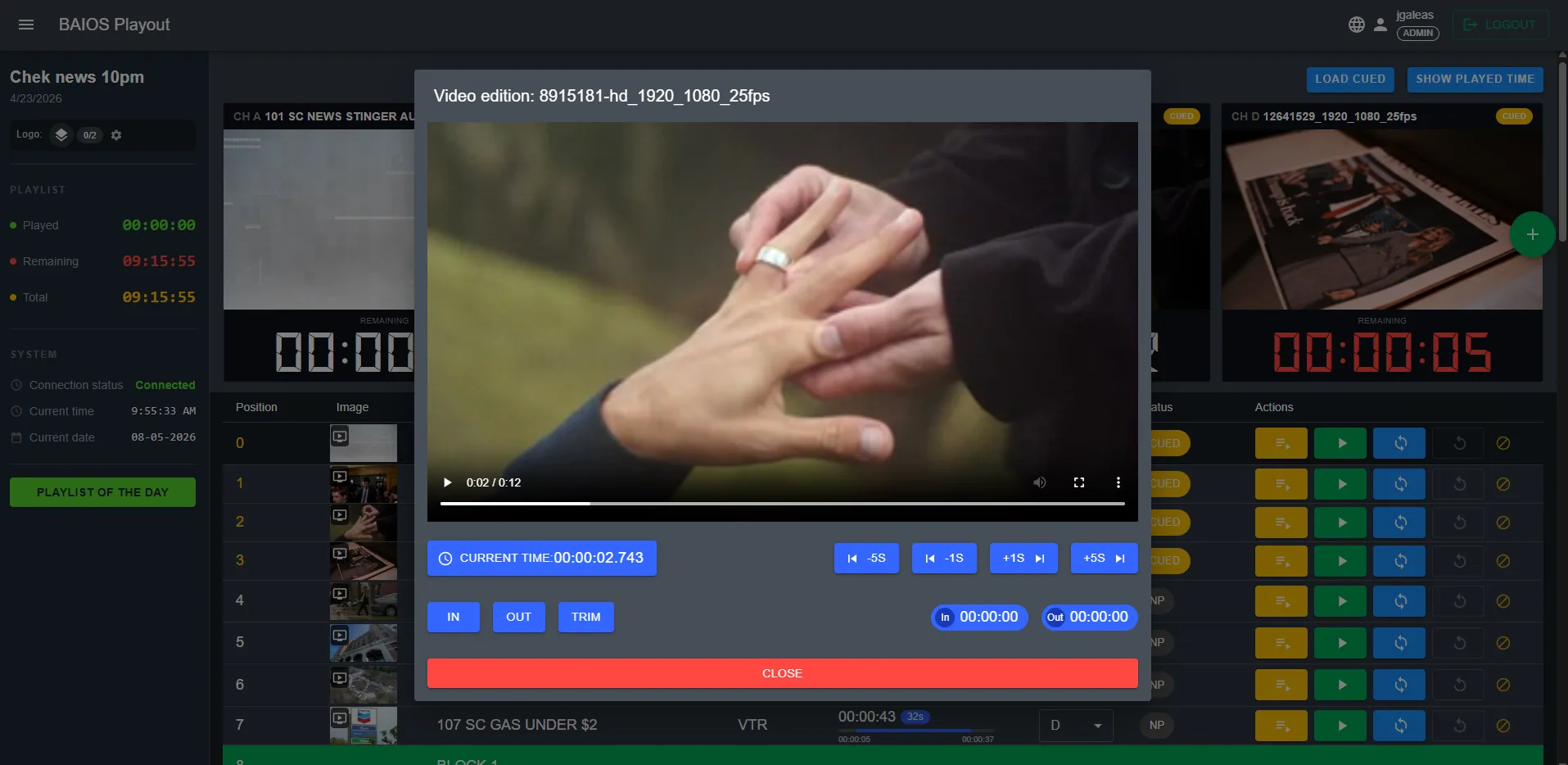

Frame-Accurate Video Trimming
Set precise IN and OUT points with sub-second accuracy. Navigate with ±1s and ±5s jog controls. Trim clips directly in the playlist without leaving the playout environment.
Preview every frame before it goes to air. The built-in video player shows current timecode, duration, and allows fullscreen review.
Why Baioss Playout
Engineered for Airtime
Every feature is built with one goal: keeping your broadcast on air, on time, and on brand.
Web-Based Interface
Access your playout system from any browser. No client software to install. Dark theme optimized for control room lighting conditions.
Real-Time Status Monitoring
Connection status, played/remaining/total duration, and channel status indicators update in real time. Know exactly where you stand.
Block & Segment Organization
Group playlist items into blocks for commercial breaks, segments, or show sections. Visual color coding for instant recognition.
Interface
See It in Action
Real screenshots from the Baioss Playout control interface.

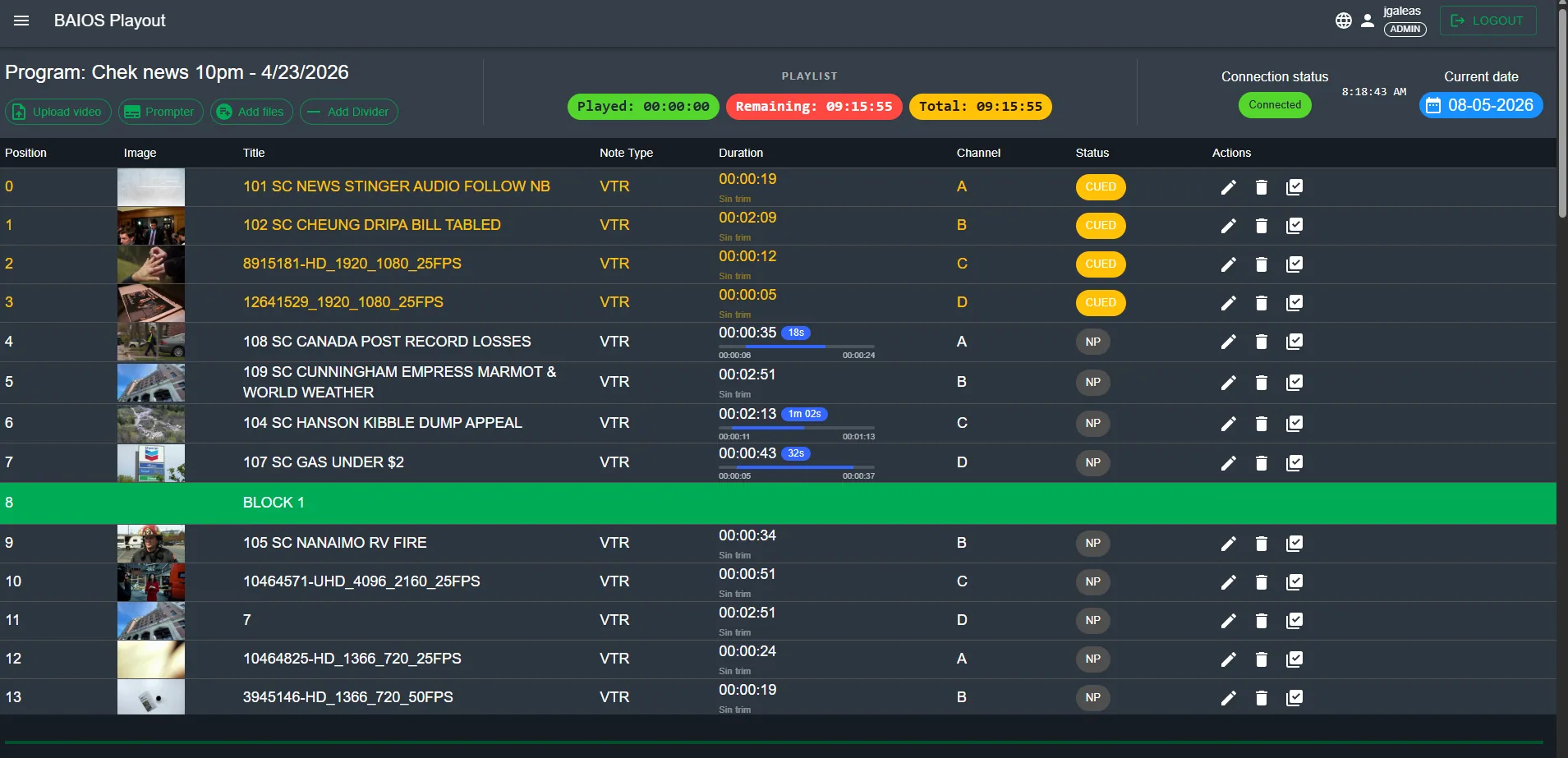

Playlist Editor
Program scheduling with played/remaining/total duration tracking.
NDI Signal Discovery
Auto-discover and add NDI sources on your network.
Media Library
Browse, preview, and batch-import videos with thumbnails.
User Management
Admin and Editor roles with program-level assignments.
Specifications
Technical Details
| Specification | Details |
|---|---|
| Output Channels | Multi independent channels (A / B / C / D) |
| Video Formats | HD 1920×1080, UHD 3840×2160, SD 720×576/480 |
| Frame Rates | 23.976, 24, 25, 29.97, 30, 50, 59.94, 60 fps |
| Ingest Protocols | SRT (Caller/Listener), RTMP (Push/Pull), NDI (v5) |
| Video Codecs | H.264, H.265/HEVC, ProRes, DNxHD and more |
| Audio | PCM, AAC, 2.0 / 5.1 surround support |
| Graphics | PNG, JPG, GIF, WEBP, WEBM (alpha), CG 2.3+ |
| Container Formats | MP4, MOV, MXF, MKV, TS |
| User Roles | Administrator, Editor (program-scoped permissions) |
| Interface | Web-based, dark theme, responsive design |
Ready to Upgrade Your Broadcast Workflow?
Schedule a live demo and see how Baioss can streamline your playout operations, from ingest to air.
